PMax XS

PMax XS

Piezoelectric ultrasonic generator with Air and Light

SATELEC presents the first ever autoclavable LED light handpiece with the Air Active function. Extremely powerful LED light(65 000 LUX) for an excellent visibility, even in posterior areas. Air Active, exclusive endo function: elimination of dentinal debris and dry work without heating.

Features

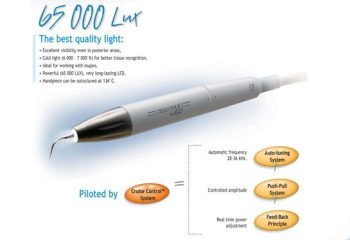

  • The best quality light
  • Excellent visibility even in posterior areas,
  • Cold light (6 000 – 7 000°K) for better tissue recognition,
  • Ideal for working with loupes,
  • Powerful (65 000 LUX), very long-lasting LED,
  • Handpiece can be autoclaved at 134°C.

Hygiene

  • The device can be easily cleaned and disinfected,
  • The cord and handpiece can be disconnected. Ergonomic

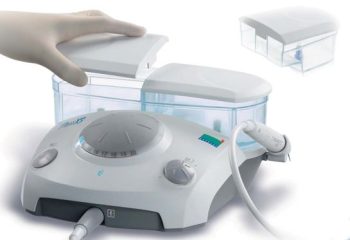

  • Two large-capacity tanks of 300 ml each,
  • Easy to fill even during a procedure,
  • Ability to use two different solutions,
  • Selected tank lights up,
  • Easy to purge and rinse.

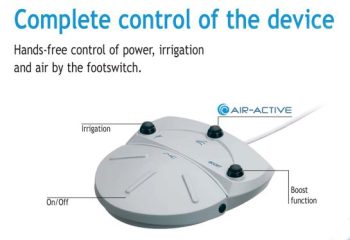

Complete control of the device

  • Hands-free control of power, irrigation and air by the footswitch.
  • A revolution in endodontics. Filtered air is delivered under low pressure at the end of the tip:
  • Elimination of calcifications,
  • Dry work without heating,
  • Canal shaping with no accumulation of dentinal mud,
  • To dry out the canal after irrigation,
  • Saves time: no need for an air/water syringe.

Technical specifications

  • Supply voltage: 100-115-230 V~ 50/60 Hz
  • Equipment classification: Classe I – BF type
  • Intermittent duty: 10 min. / 5 min.
  • Max. power consumption: 30 VA
  • Ultrasonic frequency: 28-36 kHz
  • Irrigation flow rate: 5 – 40 ml/min.

Overall dimensions

  • Width: 290 mm
  • Height: 135 mm
  • Depth: 260 mm
  • Weight: 3 200 g

Footswitch

  • Width: 173 mm
  • Height: 43 mm
  • Depth: 177 mm
  • Weight: 610 g (weighted)
  • Handpiece cord : 2 000 mm
