HANDPIECE OVERVIEW
Ti-Max or S-Max
For optic turbines choose Ti-Max or S-Max. Ti-Max has a lightweight titanium body with enhanced grip to minimise hand fatigue. Plus a 3 year warranty. Or S-Max, a stainless steel turbine with a 2 year warranty.
New to the Ti-Max range, are 2 high-performance turbines – Z990L and Z890L. As well as unprecedented power these turbines come with a new ‘quick stop’ function and an enhanced chuck to complement the power. They also have a 100˚ angled head for better visibility and access to the molar region.
All Ti-Max and S-Max turbines have 4 hole spray and Clean Head System.
Please look through the head sizes / power / coupling fittings / offers, to see which turbine best meets your needs. For further product information, click on the model number (in orange) in the first column of the chart below or contact us here at NSK.
Ti-Max
| Size / Power | Fitting | Model | Order Code | RRP | Warranty | Offer |
|---|---|---|---|---|---|---|
|

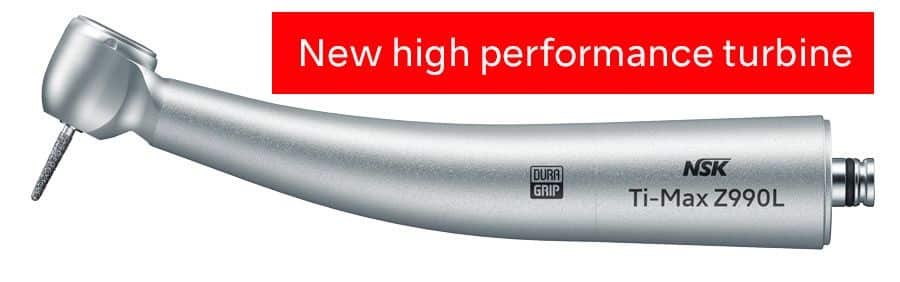

Z990L
Std head: Ø 12.1 x 12.7mm Power 30-44w* New high performance turbine |
NSK | Z990L | PA23730001 | £1,173 |
3 years 4 years for iClave users
|
2 + 1 FREE
+ a further FREE Z micro (with ultra mini-head) |
| KaVo® | Z990KL | PA23750001 | ||||
| Dentsply Sirona® | Z990SL | PA23770001 | ||||
| W&H® | Z990WL** | PA23870001 | ||||
| Bien-Air® | Z990BL** | PA23850001 | ||||
|

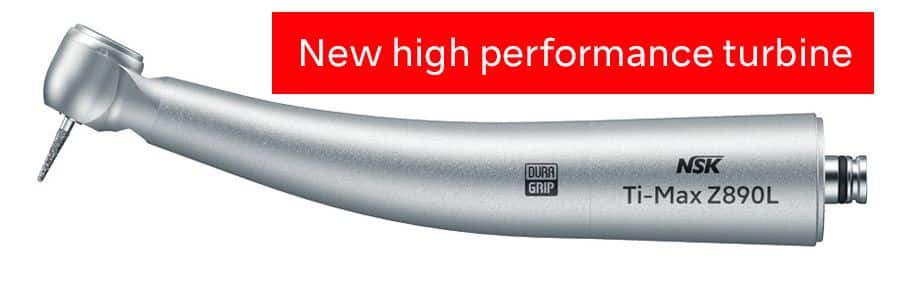

Z890L
Min head: Ø 10.6 x 10.8mm Power 28-41w* New high performance turbine |
NSK | Z890L | PA23720001 | |||
| KaVo® | Z890KL | PA23740001 | ||||
| Dentsply Sirona® | Z890SL | PA23760001 | ||||
| W&H® | Z890WL** | PA23860001 | ||||
| Bien-Air® | Z890BL** | PA23840001 | ||||
|

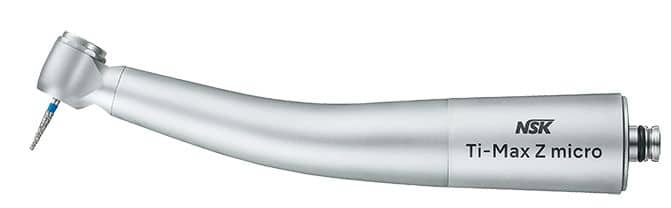

Z micro
Micro head: Ø 9 x 10.8mm Power 20w |
NSK | Z micro | PA23570001 | |||
| KaVo® | Z micro KL | PA23580001 | ||||
| Dentsply Sirona® | Z micro SL | PA23590001 | ||||
| W&H® | Z micro WL | PA23610001 |
*With air pressure at 3 to 4.2 bar. **Compatible Turbines with Integral LED KaVo and Multiflex are registered trademarks of KaVo Dental GmbH. Dentsply Sirona and Sirona are registered trademarks of Dentsply Sirona Inc. W&H and Roto Quick are registered trademarks of W&H Deutschland GmbH. Bien Air and UNIFIX are registered trademarks of Bien-Air Holding SA.
S-Max
| Size / Power | Fitting | Model | Order Code | RRP | Warranty | Offer |
|---|---|---|---|---|---|---|
| M900L Std head: Ø 12.1 x 13.3mm Power 26w | NSK | M900L | P1254001 | £773 | 2 years 3 years for iClave users | 3 + 1 FREE + 1 FREE Pico |
| KaVo® | M900KL | P1258001 | ||||
| Dentsply Sirona® | M900SL | P1262001 | ||||
| W&H® | M900WL | P1266001 | ||||
| Bien-Air® | M900BL | P1264001 | ||||

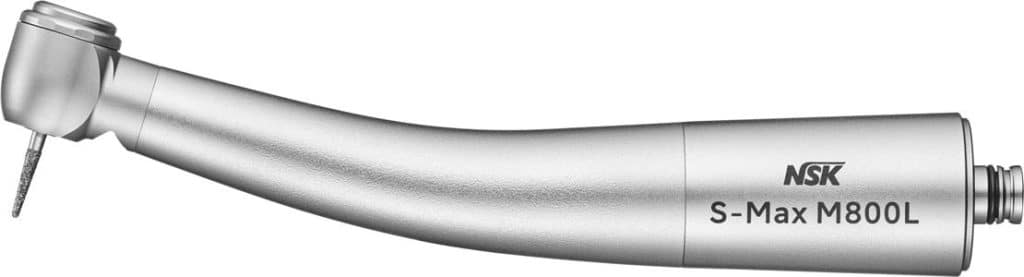

| M800L Min head: Ø 10.6 x 12.4mm Power 23w | NSK | M800L | P1254001 | |||
| KaVo® | M800KL | P1257001 | ||||
| Dentsply Sirona® | M800SL | P1261001 | ||||
| W&H® | M800WL | P1265001 | ||||
| Bien-Air® | M800BL | P1263001 | ||||

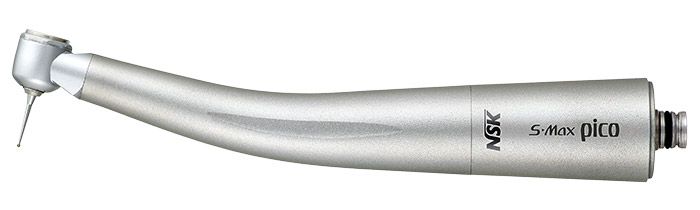

| Pico Head: Ø 8.6 x 9mm Power 9w ONLY for Short shank burs | NSK | Pico | P1140001 | £1,121 | N/A | |
| KaVo® | Pico KL | P1142001 | ||||
| Dentsply Sirona® | Pico SL | P1143001 | ||||
| W&H® | Pico WLED | P1145001 | ||||
| Bien-Air® | Pico BLED | P1144001 |
NON-Optic turbines
(high speed handpieces without light)
S-Max or Pana-Max2
S-Max (superior power, 4 hole spray & 2 year warranty) or Pana-Max2 (single hole spray, a 12 month warranty, and options for direct connection to the hose). Both are Stainless steel, have the ‘Clean head system’ and the facility for DIY cartridge change.
S-Max
Pana-Max2
| Size / Power | Fitting | Model | Order Code | RRP | Warranty | Offer |
|---|---|---|---|---|---|---|

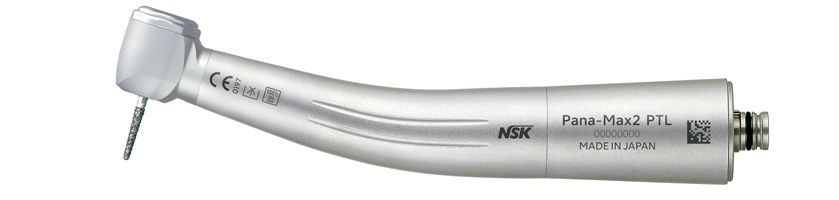

| Head: Ø 11.2 x 13.4 mm Coupling connection | PTL (NSK) | Pana-Max2 | P1211001 | £468 | 1 year
2 years
for iClave users
|
1 + 1 FREE |
| KV (KaVo) | Pana-Max2 KV | P1212001 | £468 | |||
| Head: Ø 11.2 x 13.4 mm Direct connection | B2 (Borden)* | Pana-Max2 B2 | P1155001 | £425 | ||

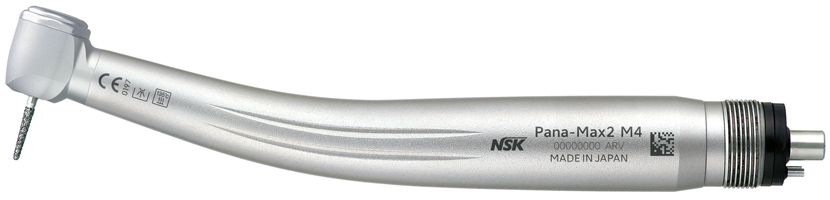

| M4 (Midwest)* | Pana-Max2 M4 | P1154001 |
*Direct connection to hose, no coupling required.
Speed Increasing Contra-Angles
(require an electric micromotor to run on)
Ti-Max or S-Max
Ti-Max (lightweight titanium external body, narrower neck/head and 3 year warranty) v S-Max (stainless steel and 2 year warranty).
Ti-Max Z95L and S-Max M95L are the regular length with the nano95LS* 10% shorter than the Z95L.

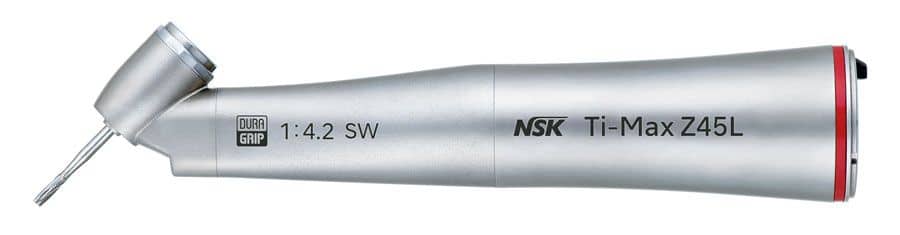

The Ti-Max Z95L & Z45L have the unique two-way spray switch, not only does switching the spray air off (leaving water jet only) further reduce aerosols, it also offers the advantage of reducing the chance of an embolism as the Z45L with its 45° head is mostly used for minor oral surgery.
*requires short shank motor, eg NLXnano, NLX Plus, NLZ.
Pana-Max2
| Name | Head Size | Type | Model | Order Code | RRP | Warranty | Offers |
|---|---|---|---|---|---|---|---|

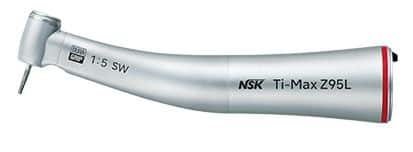

| Ti-Max | Ø 8.9 x 13.4 mm | 1:5 Optic + Switch | Z95L | C1034001-SW | £1,610 |
3 years 4 years for iClave users
|
2 + 1 FREE
+ 1 FREE Z micro |
| 1:5 Optic (10% shorter) | nano95LS | C1099001 | £1,533 | ||||
| Ø 9.6 x 14.5 mm | 1:4.2 Optic + Switch + 45° head | Z45L | C1064001 | £1,610 | |||

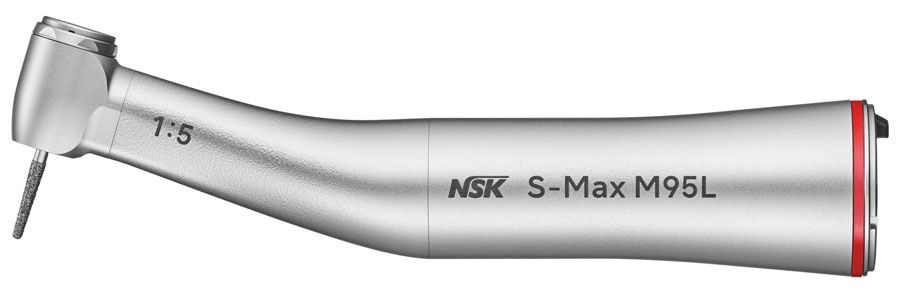

| S-Max | Ø 10 x 14.6 mm | 1:5 Optic | M95L | P1212001 | £1,040 |
2 years 3 years for iClave users
|
3 + 1 FREE
+ 1 FREE pico |
| 1:5 Non-optic | M95 | P1155001 | £863 |
1:1 Direct Drive Contra-Angles
(Slow speed handpieces)
Pana-Max2
| Name | Type | Model | Order Code | RRP | Warranty | Offers |
|---|---|---|---|---|---|---|

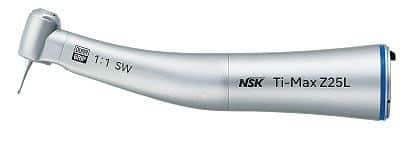

| Ti-Max | Optic with internal water (lighter/narrower neck) | Z25L | C1038001 | £1,276 |
3 years 4 years for iClave users
|
2 + 1 FREE |

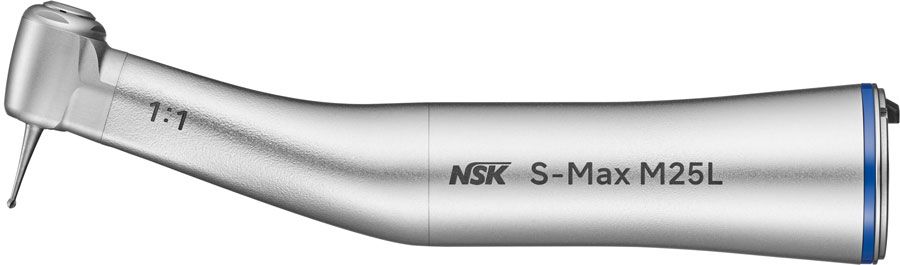

| S-Max | Optic with internal water | M25L | C1024001 | £842 |
2 years 3 years for iClave users
|
3 + 1 FREE |
| Non-optic with Internal water | M25 | C1027001 | £553 | |||

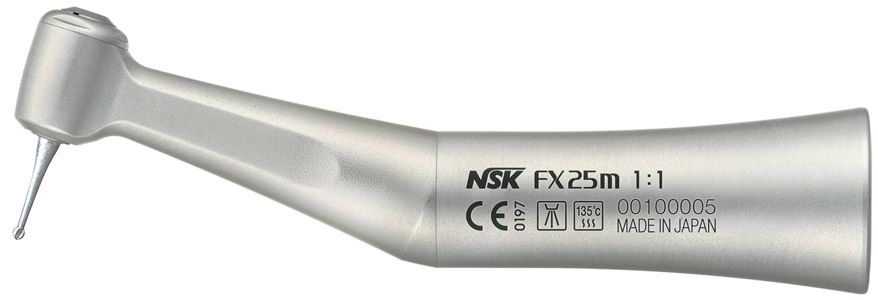

| FXm Series | Non-optic (push button chuck) | FX25m | C1052001 | £273 |
1 year 2 years for iClave users
|
1 + 1 FREE |

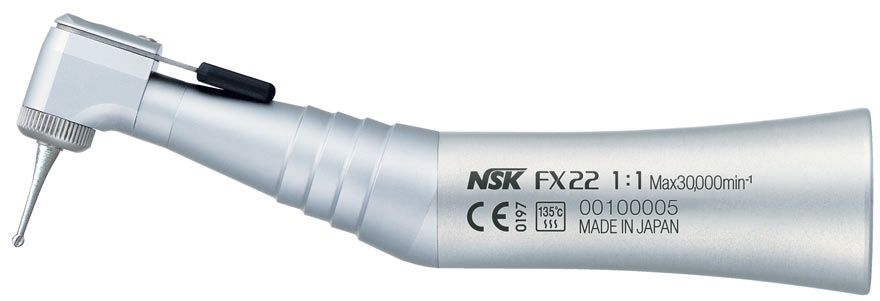

| FX Series | Non-optic (latch style chuck) | FX22 | C1129001 | £160 | 3 for £195 10 for £550 |
Straight Handpieces
(1:1 Direct Drive)
Pana-Max2
| Name | Type 1:1 Direct Drive | Model | Order Code | RRP | Warranty | Offers |
|---|---|---|---|---|---|---|

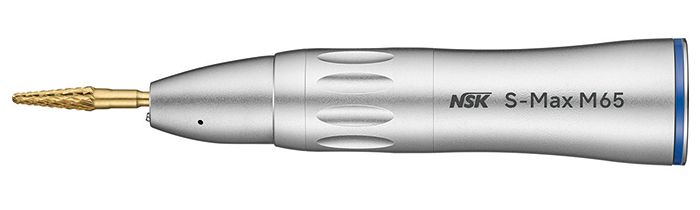

| S-Max | Non-optic with internal water | M65 | H1008001 | £541 |
2 years 3 years for iClave users
|
3 + 1 FREE |
| FXm Series | Non-optic* | FX65m | H1014001 | £247 |
1 year 2 years for iClave users
|
1 + 1 FREE |

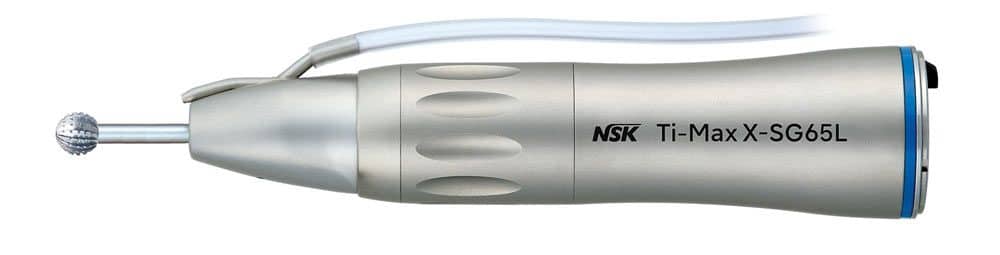

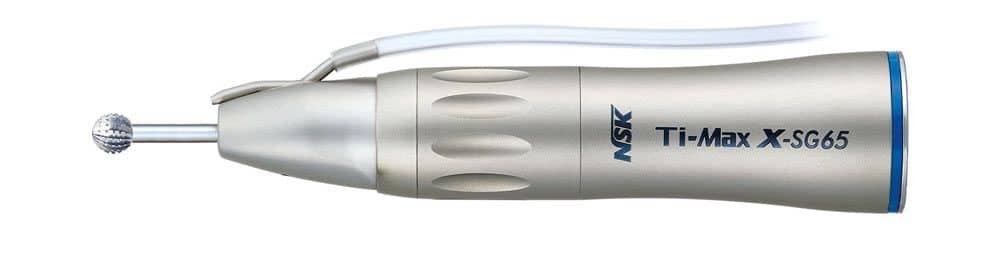

Surgical Straights
(1:1 Direct Drive)
Straight handpieces for oral surgery all with external spigot for connecting to external water/saline. Typically used with Surgic Pro/Surgic Pro2/Surgic XT.
Pana-Max2
Implant Contra-Angles
(20:1 speed reducing)
Handpieces for implants, all with external spigot for connecting to external water/saline.
Pana-Max2
| Name | Type 20:1 Speed Reducing | Model | Order Code | RRP | Warranty | Offers |
|---|---|---|---|---|---|---|

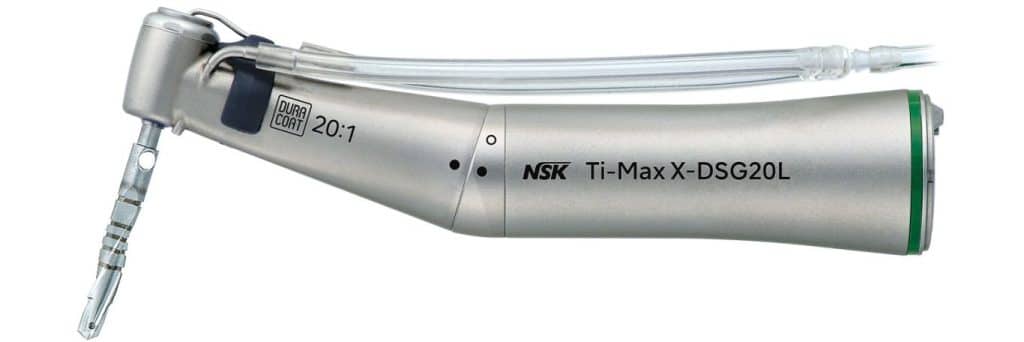

| Ti-Max | Optic + Dismantlable | X-DSG20L | C1068001^ | £1,580 |
2 years 3 years for iClave users
|
1 + 1 FREE |
| Optic | X-SG20L | C1003001^^ | £1,286 | |||

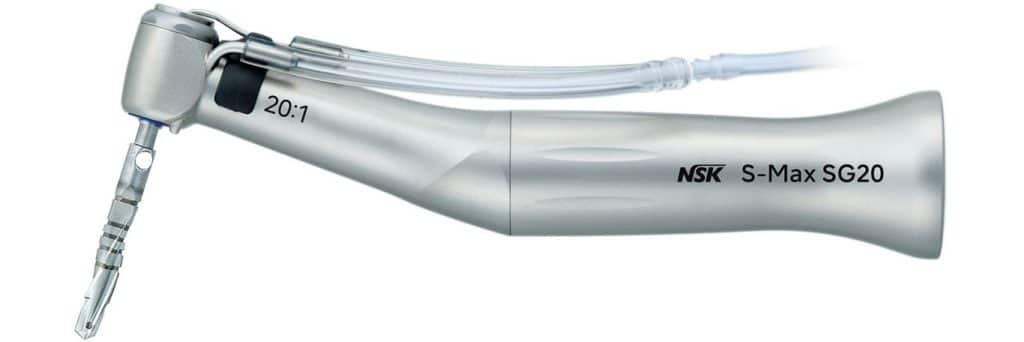

| S-Max | Non-optic | SG20 | C1010001^^^ | £1,085 | ||
| Zygomatic | Non-optic zygomatic with twist chuck | SGX-E20R | HA1200001 | £1,582 |
1 year 2 years for iClave users
|
^ sold with the optic Surgic Pro+
^^ sold with optic versions of Surgic Pro LED and Surgic Pro2
^^^ sold with non-optic versions of Surgic Pro and Surgic Pro2
Contra-Angle offers – Ti-Max 2+1 free can be used with any contra-angle(or straight) in the Ti-Max Z series. S-Max 3+1 free can be used with any contra-angle (or straight) in the S-Max series. FXm 1+1 free can be used with any contra-angle (or straight) in the FXm series. In case of handpieces with different values, the lowest valued item will be the FREE handpiece.
1:1 Direct Drive Contra-Angles / Straights can be used on electric motors and air motors. For handpieces with internal water and optics to work, the spec of the air motor (or micromotor) must at least contain the same features of internal water and optics.
